Features

Specifications

  • Image sensor
    • 1/3.06" CMOS color image sensor
    Total pixels
    • 13M
  • Output resolution
    • HDMI: 4K at 60 / 30Hz, Full HD 1080p at 60Hz, HD 720p at 60Hz
    • VGA: Full HD 1080p at 60Hz, HD 720p at 60Hz
    TV lines
    • 1,500 (max.)
  • Zoom
    • 23X Digital Zoom
    Frame rate
    • 60fps (max.)
      • Focus
        • Auto / Manual
      • Shooting area
        • Larger than A3 landscape
      • Image rotation
        • 0° / 180°
      • Internal storage
        • 200 to 240 pictures at XGA (1024 x 768)
          (Depends on content of images)
      • External storage
        • SDHC Card & USB Thumb Drive (Up to FAT32 / 32 GB)
      • One-touch recording
        • Yes
      • One-touch capturing
        • Yes
      • Image effects
        • Color / B&W / Negative
      • Image adjustments (white balance / exposure)
        • Auto / Manual
      • Display modes
        • Normal (Microscope), Motion, High Quality
      • Capture modes
        • Single / Continuous
      • User profiles
        • Yes, up to 3
      • Timer
        • Yes
      • Flicker filter control
        • Yes
      • ePTZ
        • Yes

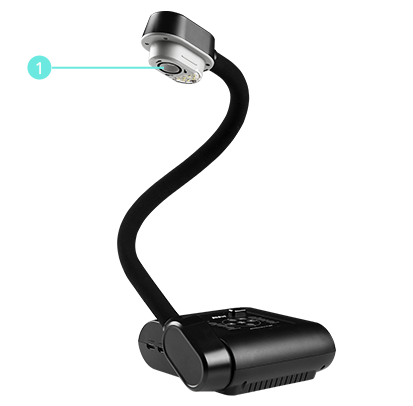

      • Light source
        • Embedded LED lamp

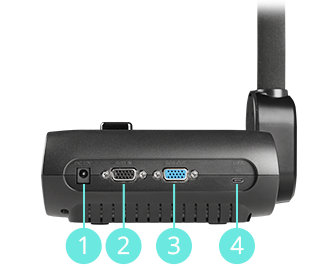

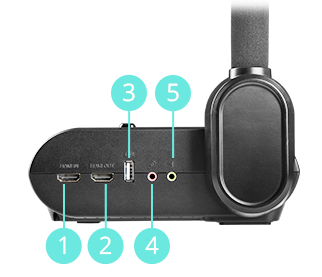

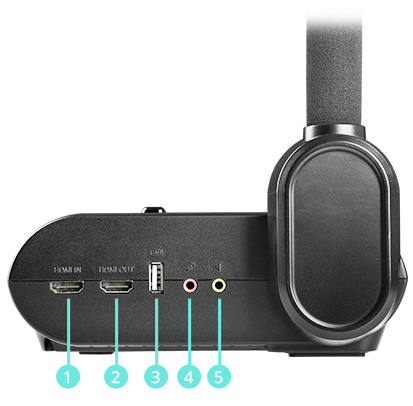

      • HDMI I/O
        • 1 in; 1 out
      • VGA I/O
        • 1 in; 1 out
      • USB 2.0 ports
        • Type-A x 1 (USB Thumb Drive)
        • Type-C x 1 (PC)
      • Audio
        • Line out (3.5 mm), Mic in (3.5 mm), Built-in Mic
      • Security
        • Kensington Slot
      • Dimensions (W x D x H)
        • Operating: 200 x 380 x 525 mm
        • Folded: 230 x 305 x 73 mm
      • Net weight
        • 2.5 kg (5.51 lbs)
      • Power source
        • DC 12V / 2A
        • AC 100 to 240V, 50 / 60Hz
      • Power consumption
        • 10 Watts (Lamp on); 9 Watts (Lamp off)
      • Warranty
        • Visualizer: 5 Years; Accessories: 1 Year
      • Software
        • AVerTouch, Sphere Lite
      • Windos®   OS
        • Windows® 7, 10, 11
      • Mac®   OS
        • macOS® X 10.15, 11, 12
      • Chrome™ OS
        • Chrome™ OS 88 or later
          (Available via the Sphere Lite App only)
      • Optional accessories
        • Microscope Adaptor, Anti-Glare Sheet, Carrying Bag
      • Package contents
        • AVerVision F17+, USB Type-A to Type-C Cable, VGA Cable, Power Adapter, Remote Control, Quick Start Guide

      * Specifications may vary depending on location and are subject to change without notice.

      URL

      Accessories

      • Standard:

        Remote Control
      • Optional:

        Microscope adapter
      • Optional:

        Anti-glare sheet
      • Optional:

        Carrying bag
