Revolutionary Removable Head Design

The removable camera head design is a true revolution in telemedicine - the doctor can not only make use of the motorized remote controlled PTZ functionality, the near-site medical assistant can also simply remove the camera from the base and easily give the doctor a clear view of any difficult to capture area of interest.

Unparalleled 30X Optical Zoom Capability

The 30X optical zoom lens picks up even the smallest of details for the doctor to precisely diagnose, thanks to a superior autofocus, zoom speed and speedy camera movements.

Outstanding 4K Resolution

The MD330UI delivers ultra-clear 4K resolution imagery of the patient to the doctor and works together with the excellent 30X optical zoom to allow doctors to make accurate remote diagnoses.

Sony WDR sensor

AI Acoustics

With an integrated speakerphone and microphone, the MD330UI is equipped with an all-in-one audio system. AVer’s in-house AI Noise Deduction technology makes communication smooth and telemedicine sessions stress free.

md300-group

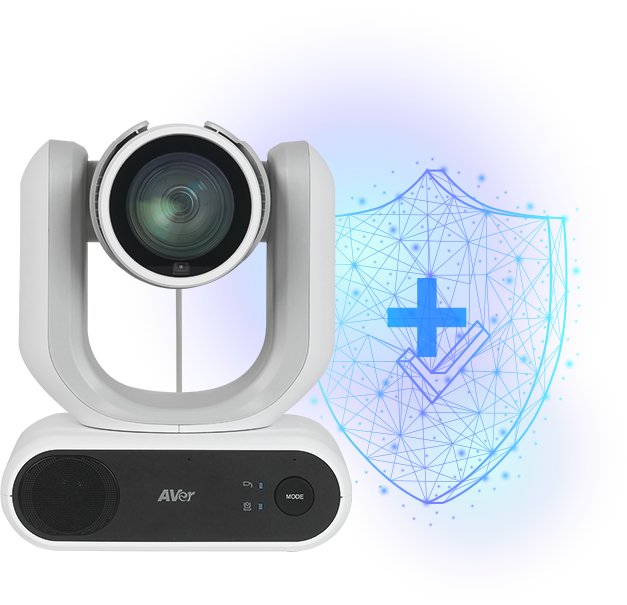

Medical Grade Certification

The IEC 60601-1-2 medical certification not only ensures stability and safety of the MD330UI, but also guarantees the compatibility of other medical grade devices with the MD330UI.

Hardware Specifications

  • 1Removable Camera Lens
  • 2Speaker
  • 3Microphone Array
  • 4LED Indicator
  • 5Mode Switch Button

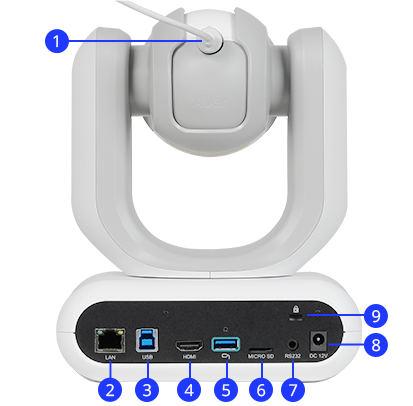

  • 1USB Type-A for Camera Connection
  • 2RJ45
  • 3USB 3.0 Type-B
  • 4HDMI
  • 5USB Type-A
  • 6microSD Card Slot
  • 7RS-232
  • 8DC 12V
  • 9Kensington Slot
  • 1Snapshot Button

Specifications

  • Camera

  • Image Sensor
    • 1/2.8" 4K Exmor CMOS
  • Effective Picture Elements
    • 8 Megapixels
  • Output Resolutions
    • 4K/30 (IP/UVC only), 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30
  • Minimum Illumination
    • 0.7 lux (IRE50, F1.6, 30fps)
  • S/N Ratio
    • ≥ 50 dB
  • Gain
    • Auto, Manual
  • Shutter Speed
    • 1/1 to 1/10,000 sec
  • Exposure Control
    • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance
    • Auto, Manual
  • Optical Zoom
    • 30X
  • Viewing Angles
    • DFOV: 75.5° (Wide) to 3.1° (Tele)
    • HFOV: 68.0° (Wide) to 2.7° (Tele)
    • VFOV: 41.7° (Wide) to 1.5° (Tele)
  • Focal Length
    • f = 4.3 mm (Wide) to 129 mm (Tele)
  • Aperture (Iris)
    • F = 1.6 (Wide) to 4.7 (Tele)
  • Minimum Working Distance
    • 0.01 m (Wide), 1.2 m (Tele)
  • Pan / Tilt Angles
    • Pan: ±170°, Tilt: +90° / -35°
  • Pan / Tilt Speed (Manual)
    • Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
  • Preset Speed
    • Pan: 200° / sec, Tilt: 200° / sec
  • Preset Positions
    • 10 (IR), 256 (RS-232 / IP)
  • Camera Control - Protocols
    • VISCA (RS-232 / IP), CGI (IP)
  • Image Processing
    • Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC
  • Power Frequencies
    • 50 Hz, 60 Hz

  • Speaker

  • Embedded Speaker
    • Yes
  • SPL
    • 77 dB SPL (1W / 1m)
  • Maximum SPL
    • 90 dB SPL at 0.5 m

  • Microphone

  • Built-in Microphone
    • 2 (Omnidirectional)
  • AI Noise Reduction
    • Yes
  • Pickup Range
    • 5 m
  • Sensitivity
    • -33 dBFS
  • Frequency Response
    • 20 Hz to 20 KHz
  • Maximum SPL
    • 133 dB SPL at 0.5 m

  • Loop Recording

  • Resolution
    • Up to 4K
  • Length of Video
    • 5 minutes
  • Recording Modes
    • Loop & continuous
  • Loop Mechanism
    • Wipe the oldest clip

  • Interface

  • Video Outputs
    • HDMI, IP, USB
  • Audio Outputs
    • HDMI, IP, USB

  • General

  • Power Requirement
    • AC 100 - 240V to DC 12V/3.34A
  • Power Consumption
    • 36W
  • Dimensions (W x H x D)
    • 168.0 x 205.0 x 126.0 mm
  • Net Weight
    • 1.95 kg
  • Application
    • Indoor
  • Tally Lamp
    • N/A
  • Security
    • Kensington Slot
  • Remote Control
    • Infrared
  • Operating Conditions
    • Temperature: 0 °C to +35 °C
    • Humidity: 20% to 80%
  • Storage Conditions
    • Temperature: -20 °C to +60 °C
    • Humidity: 20% to 95%

  • IP Streaming

  • Resolution
    • 4K 30fps
  • Network Video Compress Formats
    • H.264, H.265
  • Maximum Frame Rate
    • 4K 30fps
  • Network Interface
    • 10 / 100 / 1000 Base-T
  • Multi-Stream Capability
    • 2 (RTSP / Web Page), 4K 30fps (max.)
  • Network Protocols
    • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP

  • USB

  • Connector
    • USB 3.0
  • Video Format
    • MJPEG, YUY2
  • Audio Format
    • PCM
  • USB Video Class (UVC)
    • UVC 1.1
  • USB Audio Class (UAC)
    • UAC 1.0

  • Software Tools

  • IP Search and Configuration Tool
    • Support Windows® 7 or later

  • Warranty

  • Camera
    • 3 Years
  • Accessories
    • 1 Year

  • Package Contents
    • Camera, Remote Control, Power Adapter, Power Cord, Screws (x2), USB Cable, QR Code Card

* Specifications may vary depending on countries and are subject to change without notice.
