Up to 15X Optical Zoom

Featuring a PTZ camera with a 15X optical zoom, the PTC115 sports a 350° pan and 120° tilt radius that are ideal for classrooms or meeting spaces. Precisely track the moving presenter and distinctly display important details with full HD 1080p 60fps video and a powerful remote autofocus function. Capture the full classroom experience with the most realistic and dynamic image quality.

ptc115
ptc115

No Extra Devices Needed

Exclusive algorithms enable the PTC115 to automatically track a presenter’s face and movements. Speakers are free to walk around the classroom without wearing any accessories to give guidance and solve problems for students, ensuring a quality education. Without need to worry about the connection restrictions, charging security, or added expense of a wearable device, you can focus on easily building zero-distance interactive teaching.

Dual Lens Design

The dual lens design integrates a PTZ camera with a super-wide 120° FOV secondary camera to track the speaker and capture a panoramic view of the classroom at the same time. Also, enable and adjust PIP mode while capturing to simultaneously view the speaker and the rest of the classroom. Clearly present every detail, and never miss a teachable moment.

ptc115

Multi-Presenter Detection

Multi-Presenter Detection accurately tracks when there are two or more people in the effective area. This feature allows teachers to conduct group discussions, quiz contests, interactive games, and more. Use one camera to capture every detail of every learning situation.

*Multi-Presenter Detection only works in Wide Area Tracking and Stage Tracking modes.

ptc115

Wide Area Tracking

With advanced targeting algorithms, the PTC115’s Wide Area Tracking enables to track your target everywhere. The PTC115 provides extremely high accuracy tracking that is widely recognized as a performance leader in the auto tracking market. With fluid and accurate tracking your target has the freedom to leave the stage to interact with crowds or students all while being continuously captured, even if obscured by people or objects. The PTC115 lets you master your recording and capture every brilliant moment.

ptc115

Stage Tracking

Get high-quality, hands-free video streaming and recording with Stage Tracking. Fluidly track your target with Effective Zone settings allowing for up to 8 blocking zones to capture strategic, professional-looking video.

Segment Tracking

Segment Tracking enhances your ability to capture content on multiple displays. Create up to 4 Content Zones to perfectly capture the content on display rather than the presenter.

ptc115

Specs

  • PTZ Camera

  • Image Sensor
    • 1/2.8" 60fps low lux CMOS sensor
  • Effective Picture Elements
    • 2 Megapixels
  • Minimum Illumination
    • IRE50: 0.47 lux (60fps)
    • IRE50: 0.23 lux (30fps)
  • Optical Zoom
    • 15X
  • Digital Zoom
    • 12X
  • Lens Focal Length
    • f = 4.3 mm (wide) - 64.5 mm (tele)
  • Iris
    • F=1.6 (wide) - 4.2 (tele)
  • View of Angle
    • DFOV = 76° (wide) - 5° (tele)
  • Output Resolution
    • Auto
    • 1080p/60
    • 1080p/50
    • 1080i/60
    • 1080i/50
    • 1080p/30
    • 720p/60
  • Preset Number
    • 10 (IR Remote)
    • 256 (RS232)
  • Minimum Working Distance
    • 0.1m at wide-end
    • 1.2m at tele-end (15X)
  • White Balance
    • Auto
    • Manual (2500 - 10000)
  • Gain
    • Auto
    • Manual
  • Electronic Shutter
    • 1/5 s to 1/32,000 s
  • Backlight Compensation (BLC)
    • Off
    • On
  • Exposure
    • Auto
    • Shutter Priority
    • IRIS Priority
    • Manual
  • Noise Reduction
    • Off
    • Low
    • Medium
    • High
  • Frequency
    • Auto
    • 50 Hz
    • 60 Hz
  • S/N Ratio
    • > 50db
  • Horizontal Resolution
    • Center: 800 TV Lines
    • Corner: 600 TV Lines
  • Pan Tilt Parameter

  • Pan Rotation
    • -175° (left) +175° (right)
  • Tilt Rotation
    • -30° (down) +90° (up)
  • Pan Control Speed
    • 2° - 50° /sec
  • Tilt Control Speed
    • 2° - 50° /sec
  • Preset Speed
    • Pan: 160° /sec
    • Tilt: 160° /sec
  • Panoramic Camera (Full View)

  • Image Sensor
    • 1/2.8" 60fps low lux CMOS sensor
  • Effective Picture Elements
    • 2 Megapixels
  • Output Resolution
    • Auto
    • 1080p/60
    • 1080p/30
    • 720p/60
  • Lens Focal Length
    • 2.12 mm
  • White Balance
    • Auto
  • Exposure
    • Auto
  • FOV
    • DFOV = 120°
    • HFOV = 110°
    • VFOV = 74.5°
  • Interface / Streaming / Protocol

  • Video Output
    • 3G-SDI *2
    • HDMI *1
    • IP (RJ45)
  • Video Output Capability
    • up to 1080p/60fps
  • Remote Control
    • RS232 (via optional DB9 to DIN6 adapter)
    • IP (RJ45)
  • Baud Rate
    • 115200/9600/4800/2400 bps
  • Network Interface
    • 10/100/1000 Base-T
    • Support Wake-on-LAN
  • Network Video Compress Format
    • H.264
  • Network Protocols
    • RTSP
    • RTMP
    • ONVIF
  • IP Video Streaming
    • Dual Video Streaming (PTZ and panoramic view)
  • Control Protocols
    • VISCA
    • Pelco-D
    • Pelco-P
  • Power
    • Power adapter DC 12V
  • System

  • Remote IR
    • IR sensor
  • Audio
    • PCM
    • AAC-LC
    • G.711
  • LED
    • Power (blue = on, red = off)
  • Security
    • Kensington slot
  • Infrared Remote
    • Receiver on front of camera
  • Power Adapter
    • AC 110V - AC 220V to DC 12V/5A
  • Consumption
    • 24 W (Max.)
  • Operating Temperature
    • 0°C - +40°C
  • Operation Humidity
    • 20% ~80%
  • Storage Temperature
    • -20°C - +60°C
  • Storage Humidity
    • 20% - 95%
  • Dimensions
    • L = 201 mm
    • W = 210 mm
    • H= 176 mm
  • Weight
    • 1.75 kg
  • Application
    • Indoor
  • Accessories
    • Remote control
    • 12V/5A power adapter
    • DB9 to DIN6 adapter
    • Quick guide

* Specifications may vary depending on location and are subject to change without notice.

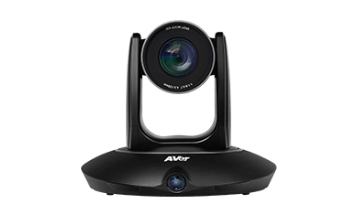

Front
Back
  • 1PTZ camera
  • 2Panoramic camera
  • 3Power indicator
  • 4RJ-45
  • 53D-SDI 2 (Panoramic view)
  • 63D-SDI 1 (PTZ view)
  • 7HDMI (PTZ view)
  • 8Audio line in
  • 9RS-232
  • 10DC 12V




URL

Accessories

  • Remote Control

    Standard:

    Remote Control
  • Batteries

    Standard:

    Batteries
  • 12V/5A Power Adapter

    Standard:

    12V/5A Power Adapter
  • Power Cord

    Standard:

    Power Cord
  • RS232 DB9 to DIN6 Cable

    Optional:

    RS-232 DB9 to DIN6 Cable
  • PTZ Camera Controller

    Optional:

    PTZ Camera Controller CL01
  • HDMI/SDI to USB Converter

    Optional:

    HDMI/SDI to USB Converter
  • L-Type Wall Mount

    Optional:

    L-Type Wall Mount
