NDI®|HX for Greater Reach

The PTZ330N complies with the most rigorous NDI standards to deliver the lowest latency for on-air camera control, switching, and streaming - all via IP connection. It makes live broadcasts faster and simpler, allowing users to stream for larger audiences without complicated and expensive equipment. Design efficient and flexible IP workflows at will.

ptz330n
NDI is in the hands of millions of users allowing multiple video systems to identify and communicate with one another over IP. NDI can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including video mixers, graphics systems, capture cards, and many other production devices. This makes it possible to exponentially increase the number of sources available for live production switching, without directly attaching to devices, changing locations, or investing in expensive, high-bandwidth networks that simply replace SDI-based workflows.

Higher Quality with a CMOS Sensor

Designed with a 1/2.8-type Exmor™ CMOS sensor, the PTZ330N delivers a robust autofocus for high-quality video. Even in poorly lit environments that are too dark or bright, it delivers brilliant colors and detailed video in 1080p at 60fps. Outstanding performance and video quality make live recording extremely convenient.

PTZ330N
PTZ330N

30X Optical Zoom

Sporting a 30X optical zoom and a 1/2.8' sensor, the PTZ330N renders a 67°–2.3° field of view. Plus, our motion control algorithms enable pan/tilt rotation maneuvers as small as 0.1° per step while constantly capturing crystal-clear images.

Fit Your FOV in Seconds

AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.

PTZ330N

Seamless Tracking Between Your Preset Zones

AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ330N across all your preset zones. Save effortand time, while providing your video with a huge variety of shooting ranges.

ptz330n

Specifications

  • Camera

  • Image sensor
    • 1/2.8" 1080p 60fps Exmor CMOS
  • Effective Picture Elements
    • Approx. 2.1 megapixels
  • Output Resolution
    • Auto
    • 1080p@60, 1080p@59.94, 1080p@50, 1080i@60, 1080i@59.94, 1080i@50, 1080p@30, 1080p@29.97, 1080p@25, 720p@60, 720p@59.94, 720p@50
  • Minimum Illumination
    • 0.3 lux (IRE50, F1.6, 30fps)
  • S/N Ratio
    • > 50dB
  • Gain
    • Auto / Manual
  • TV Line
    • 800 (Center/Wide), 600 (Corner/Wide)
  • Shutter Speed
    • 1/1s – 1/32,000s
  • Exposure Control
    • Auto, Manual, Priority AE (Shutter, IRIS), BLC
  • White Balance
    • Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000)
  • Optical Zoom
    • 30X
  • Digital Zoom
    • 12X
  • Horizontal Viewing Angle
    • 67° (Wide) – 2.3° (Tele)
  • Focal length
    • f = 4.3 mm (Wide) – 129 mm (Tele)
  • Aperture (Iris)
    • F = 1.6 (Wide) – 4.7 (Tele)
  • Minimum Working Distance
    • 0.01 m (Wide), 1.2 m (Tele)
  • Pan/Tilt Angle
    • Pan: +- 170° ; Tilt: +90° / -30°
  • Pan/Tilt Speed (manual)
    • Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec
  • Preset Speed
    • Pan: 200° /sec, Tilt: 200° /sec
  • Preset Position
    • 10 (IR), 255 (RS-232)
  • Camera Control - Interface
    • RS-232 (DIN9) / RS-422 (RJ45)
  • Camera Control - Protocol
    • VISCA (RS-232/RS-422/IP), CGI (IP), Pelco-D, Pelco-P
  • Image Processing
    • Noise Reduction (2/3D), Flip, Mirror
  • Power Frequency
    • Auto / 50Hz / 60Hz

  • Audio

  • Channel
    • 2ch (Stereo)
  • Codec
    • AAC-LC (48/44.1/32/24K), G.711/PCM
  • Sample Rate
    • 48/44.1/32/24/16/8Khz

  • Interface

  • Video Output
    • 3G-SDI, HDMI, IP, USB
  • Audio Output
    • 3G-SDI, HDMI, IP, USB
  • Audio Input
    • MIC / Line in

  • General

  • Power Requirement
    • AC100V-AC240V to DC12V/5A
  • PoE
    • PoE+ (IEEE 802.3at), Class 4
  • Operating Condition
    • Temperature: 0°C to +40°C ; Humidity: 20% to 80%
  • Storage Condition
    • Temperature: -20°C to +60°C ; Humidity: 20% to 95%
  • Dimensions
    • L=180 mm, W= 145 mm, H= 183.5 mm
  • Weight
    • 1.62 kg
  • Application
    • Indoor
  • Security
    • Kensington slot
  • Remote Control
    • Infrared
  • Accessories
    • Remote control, 12V/5A power adapter

  • IP Streaming

  • Resolution
    • 1920x1080, 1280x720, 960x540, 640x480
  • Network Video Compress Format
    • H.264 (High Profile), MJPEG
  • Maximum Frame Rate
    • H.264: 60fps (1920x1080), MJPEG: 30fps (1920x1080)
  • Bit-rate Control Mode
    • VBR / CBR (selectable)
  • Range of Bit-rate setting
    • 512Kbps – 32Mbps
  • Network Interface
    • 10/100/1000Base-T
  • Multi-stream Capability
    • 2
  • Network Protocol
    • IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, ONVIF, VISCA over IP
  • NDI®|HX Capability
    • Yes

  • USB

  • Connector
    • Micro-USB 2.0
  • Video Format
    • YUV, MJPEG, H.264
  • Maximum Video Resolution
    • Up to 1080p
  • USB Video Class
    • UVC1.1
  • USB Audio Class
    • UAC1.0

  • Web UI

  • Live Video Preview
    • Yes
  • Camera PTZ Control
    • Pan / Tilt / Zoom / Focus / Preset Control
  • Camera / Image Adjustment
    • Exposure / White Balance / Picture
  • Network Configuration
    • DHCP, IP Address, Gateway, Subnet Mask, DNS

  • Software Tools

  • Device IP Searching, Configuration Tool
    • Windows Application

  • Warranty

  • Camera
    • 3 Years
  • Accessories
    • 1 Year

* NDI® is a registered trademark of NewTek, Inc.
* NDI®|HX2 is technology of NewTek, Inc.
* Specifications may vary depending on location and are subject to change without notice.

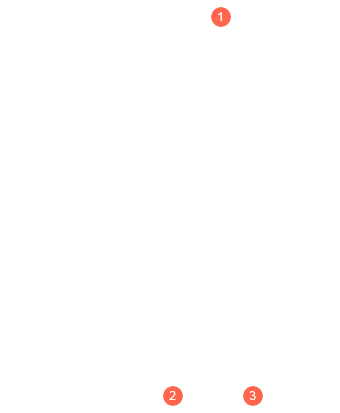

Front

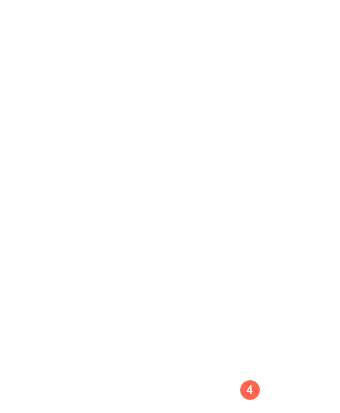

Side

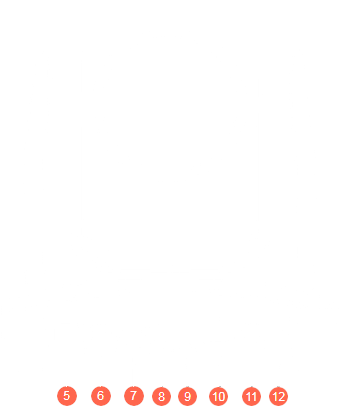

Back
  • 1Camera lens
  • 2IR sensor
  • 3LED indicator
  • 4Kensington lock
  • 5NDI®|HX / PoE+ port
  • 6RS-232 port
  • 7RS-422 port
  • 8Audio in
  • 9Micro USB port
  • 10HDMI port
  • 113G-SDI port
  • 12DC Power jack




URL

Accessories

  • Remote Control PN: 0412S310-ARE

    Standard:

    Remote Control
  • Batteries PN: 04091R5AAABX

    Standard:

    Batteries
  • 12V/5A Power Adapter PN: 04131HGOOAPF

    Standard:

    12V/5A Power Adapter
  • Power Cord PN: 064APOWERA5P (UK)
    064APOWERCBX (EU)

    Standard:

    Power Cord
  • HDMI Cable PN: 064AHDMI-BGR

    Standard:

    HDMI Cable
  • RS232 DIN 8 to D-Sub 9 Cable PN: 064AOTHERBPK

    Optional:

    RS-232 DIN 8 to D-Sub 9 Cable
  • RS232 In/Out Cable PN: 064AOTHERCCN

    Optional:

    RS-232 In/Out Cable
  • PTZ Camera Controller PN: 60S3300000AB

    Optional:

    PTZ Camera Controller CL01
  • Ceiling Mount Brackets PN: 60S3300000AD

    Optional:

    Ceiling Mount Brackets
  • L-Type Wall Mount PN: 60V2B10000AL

    Optional:

    L-Type Wall Mount
  • USB 3.1 Type-A to A cable (10m) PN:064AUSB−−CC5

    Optional:

    USB 3.1 Type-A to A cable (10m) **
  • USB 3.1 Type-A to A cable (20m) PN:064AUSB−−CC6

    Optional:

    USB 3.1 Type-A to A cable (20m) **
  • USB 3.1 Type-A to A cable (30m) PN:064AUSB−−CDS

    Optional:

    USB 3.1 Type-A to A cable (30m) **
  • * Please contact local authorized dealer/distributor for purchasing optional accessories.
  • ** AVer USB3.0 extender only supports USB3.0 port of PC. It's not compatible with USB2.0.
