Features

AVerBravo

Model PTC310HWV2 PTC310UV2 PTC330UV2 PTC320UNV2 PTC320UV2
Output Resolutions 1080p 4K 4K 4K 4K
Effective Picture Elements 2 MP 8 MP 8 MP 8 MP 8 MP
Optical Zoom 12X 12X 30X 21X 21X
3G-SDI Port no yes yes yes yes
HDMI Port yes yes yes yes yes
PoE+ Port yes yes yes yes yes
USB Port yes yes yes yes yes
NDI®|HX License Upgrade License Upgrade License Upgrade yes NDI HX2 License Upgrade
More More More More More

Specifications

  • Camera

  • Image Sensor
    • 1/2.8" 1080p Exmor CMOS
  • Effective Picture Elements
    • 2 Megapixels
  • Output Resolutions
    • 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
  • Minimum Illumination
    • 0.5 lux (IRE50, F1.6, 30fps)
  • S/N Ratio
    • ≥ 50dB
  • Gain
    • Auto, Manual
  • TV Lines
    • 900 (Center/Wide)
  • Shutter Speed
    • 1/1 to 1/32,000 sec
  • Exposure Control
    • Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
  • White Balance
    • Auto, Manual, ATW, One Push
  • Optical Zoom
    • 12X
  • Digital Zoom
    • 12X
  • Total Zoom
    • 144X
  • Viewing Angles
    • DFOV : 78° (Wide) to 7° (Tele)
    • HFOV : 70° (Wide) to 6° (Tele)
    • VFOV : 42° (Wide) to 3° (Tele)
  • Focal Length
    • f = 3.9 mm (Wide) to 46.8 mm (Tele)
  • Aperture (Iris)
    • F = 1.6 (Wide) to 2.8 (Tele)
  • Minimum Working Distance
    • 0.3 m (Wide), 1.5m (Tele)
  • Pan / Tilt Angles
    • Pan : ±170°, Tilt : +90° / -30°
  • Pan / Tilt Speed (Manual)
    • Pan : 0.1° to 100° / sec, Tilt : 0.1° to 100° / sec
  • Preset Speed
    • Pan : 200° / sec, Tilt : 200° / sec
  • Preset Positions
    • 10 (IR), 255 (RS-232 / RS-422 / IP)
  • Camera Control - Interfaces
    • RS-232 (DIN8), RS-422 (RJ45), IP
  • Camera Control - Protocols
    • VISCA (RS-232 / RS-422 / IP), PELCO-D & PELCO-P (RS-232 / RS-422), CGI (IP)
  • Image Processing
    • Noise Reduction (2D / 3D), Flip, Mirror
  • Power Frequencies
    • 50 Hz, 60 Hz
  • AI Auto Tracking Functions

  • Tracking Modes
    • Presenter Mode, Zone Mode, Hybrid Mode
  • Privacy Protection Mechanism

  • Protection Mode
    • Sleep Mode
  • Audio

  • Channels
    • 2ch Stereo
  • Codecs
    • AAC-LC, PCM
  • Interface

  • Video Outputs
    • HDMI, IP, USB
  • Audio Outputs
    • HDMI, IP, USB
  • Audio Inputs
    • MIC in, Line in
  • General

  • Power Requirement
    • AC 100 - 240V to DC 12V/5A
  • Power Consumption
    • 19W
  • PoE
    • PoE+
  • Dimensions (W x H x D)
    • 180.0 x 192.0 x 145.0 mm
  • Net Weight
    • 2.0 (±0.1) kg
  • Application
    • Indoor
  • Tally Lamp
    • Yes
  • Security
    • Kensington Slot
  • Remote Control
    • Infrared
  • Operating Conditions
    • Temperature: 0°C to +40°C Humidity: 20% to 80%
  • Storage Conditions
    • Temperature: -20°C to +60°C Humidity: 20% to 95%
  • IP Streaming

  • Resolution
    • 1080p 60fps
  • Network Video Compress Formats
    • H.264, H.265, MJPEG
  • Maximum Frame Rate
    • 1080p 60fps
  • Bit-Rate Control Modes
    • VBR, CBR (selectable)
  • Range of Bit-Rate setting
    • 512 Kbps to 32 Mbps
  • Network Interface
    • 10 / 100 / 1000 Base-T
  • Multi-stream Capability
    • 2 (RTSP / Web Page), 1080p 60fps (max.)
  • Network Protocols
    • IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
  • NDI®|HX Capability
    • License Upgrade
  • USB

  • Connector
    • USB 3.1
  • Video Formats
    • MJPEG, YUY2
  • Maximum Video Resolution
    • 1080p
  • USB Video Class (UVC)
    • UVC 1.1
  • USB Audio Class (UAC)
    • UAC 1.0
  • Web UI

  • Live Video Preview
    • Yes
  • Camera PTZ Control
    • Pan, Tilt, Zoom, Focus, Preset Control
  • Camera / Image Adjustment
    • Exposure, White Balance, Picture
  • Network Configuration
    • DHCP, IP Address, Gateway, Subnet Mask, DNS
  • Software Tools

  • IP Search & Configuration Tool
    • Support Windows® 7 or later
  • PTZ Management
    • Support Windows® 7 or later
  • PTZ Control Panel
    • Supports iOS & iPadOS® 11 or later
  • PTZ Link
    • Support Windows® 7 or later, macOS® 10.14 or later
  • OBS Plugin for PTZ Cameras
    • Support Windows® 8 or later, macOS® High Sierra v10.13 or later
  • CaptureShare
    • Support Windows® 7 or later, macOS® 10.14 or later
  • Warranty

  • Camera
    • 3 Years
  • Accessories
    • 1 Year
  • Package Contents
    • Camera, Drilling Paper, Ceiling Mount Bracket (x2) Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4"-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
  • Optional Accessories
    • AVer CL01 PTZ Camera Controller, L-Type Wall Mount

* Specifications may vary depending on location and are subject to change without notice.

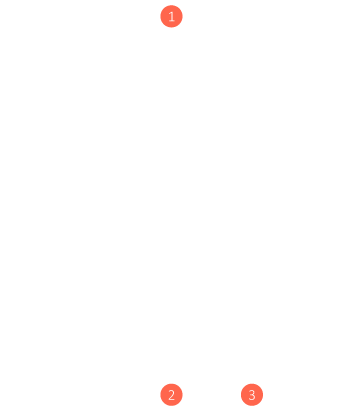

Front

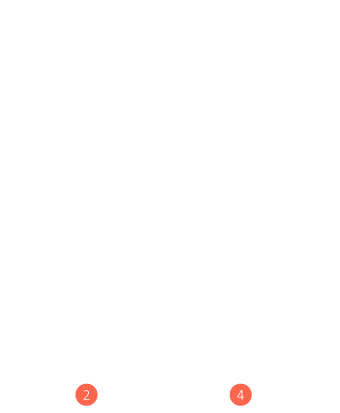

Side

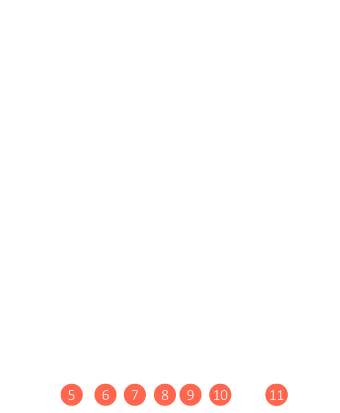

Back
  • 1Tally Lamp
  • 2IR Sensor
  • 3LED Indicator
  • 4Kensington Slot
  • 5PoE+
  • 6RS-232
  • 7RS-422
  • 8USB 3.1 Gen 1 (Type-B)
  • 9Line In
  • 10HDMI
  • 11DC 12V




URL

Accessories

  • Remote Control PN: 0412S510-AR4

    Standard:

    Remote Control
  • Batteries PN: 04091R5AAABX

    Standard:

    Batteries
  • 12V/5A Power Adapter PN: 04131HGOOAPF

    Standard:

    12V/5A Power Adapter
  • Power Cord PN: 064APOWERA5P (UK)
    064APOWERCBX (EU)

    Standard:

    Power Cord
  • Ceiling Mount Brackets PN: 60S3300000AD

    Standard:

    Ceiling Mount Brackets
  • Cable Fixing Plates PN: 112AS310-AWL
    112AS310-AWX

    Standard:

    Cable Fixing Plates
  • RS232 DIN 8 to D-Sub 9 Cable PN: 064AOTHERBPK

    Standard:

    RS-232 DIN 8 to D-Sub 9 Cable
  • RS232 In/Out Cable PN: 064AOTHERCCN

    Standard:

    RS-232 In/Out Cable
  • PTZ Camera Controller PN: 60S3300000AB

    Optional:

    PTZ Camera Controller CL01
  • L-Type Wall Mount PN: 60V2B10000AL

    Optional:

    L-Type Wall Mount
  • USB 3.1 Type-A to A cable (10m) PN:064AUSB−−CC5

    Optional:

    USB 3.1 Type-A to A cable (10m) **
  • USB 3.1 Type-A to A cable (20m) PN:064AUSB−−CC6

    Optional:

    USB 3.1 Type-A to A cable (20m) **
  • USB 3.1 Type-A to A cable (30m) PN:064AUSB−−CDS

    Optional:

    USB 3.1 Type-A to A cable (30m) **
  • * Please contact local authorized dealer/distributor for purchasing optional accessories.
  • ** AVer USB3.0 extender only supports USB3.0 port of PC. It's not compatible with USB2.0.
