PTZ310N
NDI®|HX PTZ Camera

Future-Ready IP Workflows

Intro Video

NDI®|HX PTZ Camera

Equipped with NDI®|HX capability, the PTZ310N provides flexibility and extensive applications through a single IP cable, simplifying live-production workflows by transmitting various video and audio signals efficiently and rapidly. The PTZ310N presents every angle to make content richer and more impressive for a wide range of uses, including studio productions, live events, worship services, auditorium lectures, sports and gaming competitions, online and distance learning classes, multinational conferences, personnel training sessions, and more. Enjoy efficient and simple setup, and create comprehensive NDI-based productions.

Full NDI^®|HX for Greater Reach

The PTZ310N complies with the most rigorous NDI standards to deliver the lowest latency for on-air camera control, switching, and streaming - all via IP connection. It makes live broadcasts faster and simpler, allowing users to stream for larger audiences without complicated and expensive equipment. Design efficient and flexible IP workflows at will.

NDI is in the hands of millions of users allowing multiple video systems to identify and communicate with one another over IP. NDI can encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in real time. This benefits any network-connected video device, including video mixers, graphics systems, capture cards, and many other production devices. This makes it possible to exponentially increase the number of sources available for live production switching, without directly attaching to devices, changing locations, or investing in expensive, high-bandwidth networks that simply replace SDI-based workflows.

Higher Quality with a CMOS Sensor

Designed with a 1/2.8-type Exmor™ CMOS sensor, the PTZ310N delivers a robust autofocus for high-quality video. Even in poorly lit environments that are too dark or bright, it delivers brilliant colors and detailed video in 1080p at 60fps. Outstanding performance and video quality make live recording extremely convenient.

12X Optical Zoom

Sporting a 12X optical zoom and a 1/2.8' sensor, the PTZ310N renders a 72.5°–6.3° field of view. Plus, our motion control algorithms enable pan/tilt rotation maneuvers as small as 0.1° per step while constantly capturing crystal-clear images.

Fit Your FOV in Seconds

AVer’s new SmartFrame provides you with one-touch face targeting technology to create stunning video content fast. SmartFrame instantly adjusts your FOV to fit everyone on screen at stunning speed so you can start recording presentations, lectures, and more with no hassle. Perfect for capturing multiple people, SmartFrame makes video content capturing easy and enjoyable.

Seamless Tracking Between Your Preset Zones

AVer SmartShoot optimizes your camera controls for automatic and seamless content capturing between your preset areas. With SmartShoot’s preset zone tracking you can create an uncompromising multi-camera feel with just one PTZ310N across all your preset zones. Save effortand time, while providing your video with a huge variety of shooting ranges.

Specifications

Camera

Image sensor
- 1/2.8' 1080p 60fps Exmor CMOS
Effective Picture Elements
- Approx. 2.1 megapixels

Output Resolution
- Auto
- 1080p@60, 1080p@59.94, 1080p@50, 1080i@60, 1080i@59.94, 1080i@50, 1080p@30, 1080p@29.97, 1080p@25, 720p@60, 720p@59.94, 720p@50
Minimum Illumination
- 0.4 lux (IRE50, F1.6, 30fps)

S/N Ratio
- > 50dB
Gain
- Auto / Manual

TV Line
- 800 (Center/Wide), 700 (Corner/Wide)
Shutter Speed
- 1/1s – 1/32,000s

Exposure Control
- Auto, Manual, Priority AE (Shutter, IRIS), BLC
White Balance
- Auto / Indoor / Outdoor / One-push / Manual (2500 - 10000)

Optical Zoom
- 12X
Digital Zoom
- 12X

Horizontal Viewing Angle
- 72.5° (Wide) – 6.3° (Tele)
Focal length
- f = 3.9 mm (Wide) – 46.8 mm (Tele)

Aperture (Iris)
- F = 1.6 (Wide) – 2.8 (Tele)
Minimum Working Distance
- 0.3 m (Wide), 1.2 m (Tele)

Pan/Tilt Angle
- Pan: +- 170° ; Tilt: +90° / -30°
Pan/Tilt Speed (manual)
- Pan: 0.1 – 100° /sec, Tilt: 0.1 – 100° /sec

Preset Speed
- Pan: 200° /sec, Tilt: 200° /sec
Preset Position
- 10 (IR), 255 (RS-232)

Camera Control - Interface
- RS-232 (DIN9) / RS-422 (RJ45)
Camera Control - Protocol
- VISCA (RS-232/RS-422/IP), CGI (IP), Pelco-D, Pelco-P

Image Processing
- Noise Reduction (2/3D), Flip, Mirror
Power Frequency
- Auto / 50Hz / 60Hz

AI Functions

Modes
- SmartShoot, SmartFrame

Audio

Channel
- 2ch (Stereo)
Codec
- AAC-LC (48/44.1/32/24K), G.711/PCM

Sample Rate
- 48/44.1/32/24/16/8Khz

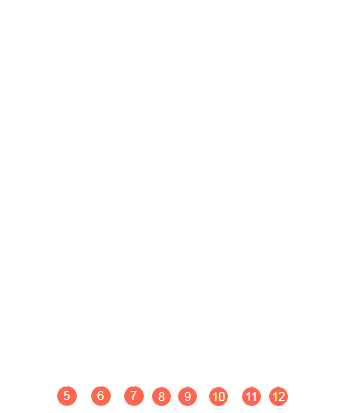

Interface

Video Output
- 3G-SDI, HDMI, IP, USB
Audio Output
- 3G-SDI, HDMI, IP, USB

Audio Input
- MIC / Line in

General

Power Requirement
- AC100V-AC240V to DC12V/5A
PoE
- POE+ (IEEE 802.3at), Class 4

Operating Condition
- Temperature: 0°C – +40°C ; Humidity: 20% – 80%
Storage Condition
- Temperature: -20°C – +60°C ; Humidity: 20% – 95%

Dimensions
- L=180 mm, W= 145 mm, H= 183.5 mm
Weight
- 1.74 kg

Application
- Indoor
Security
- Kensington slot

Remote Control
- Infrared
Accessories
- Remote control, 12V/5A power adapter

IP Streaming

Resolution
- 1920x1080, 1280x720, 960x540, 640x480
Network Video Compress Format
- H.264 (High Profile), MJPEG

Maximum Frame Rate
- H.264: 60fps (1920x1080), MJPEG: 30fps (1920x1080)
Bit-rate Control Mode
- VBR / CBR (selectable)

Range of Bit-rate setting
- 512Kbps – 32Mbps
Network Interface
- 10/100/1000Base-T

Multi-stream Capability
- 2
Network Protocol
- IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, ONVIF, VISCA over IP

Connector
- Micro-USB 2.0
Video Format
- YUV, MJPEG, H.264

Maximum Video Resolution
- Up to 1080p
USB Video Class
- UVC1.1

USB Audio Class
- UAC1.0

Web UI

Live Video Preview
- Yes
Camera PTZ Control
- Pan / Tilt / Zoom / Focus / Preset Control

Camera / Image Adjustment
- Exposure / White Balance / Picture
Network Configuration
- DHCP, IP Address, Gateway, Subnet Mask, DNS

Software Tools

Device IP Searching, Configuration Tool
- Windows Application

Warranty

Camera
- 3 Years
Accessories
- 1 Year

* Specifications may vary depending on location and are subject to change without notice.
* NDI^® is a registered trademark of NewTek, Inc.
* NDI^®|HX2 is technology of NewTek, Inc.
